Solar Power - Product Features
Highly Safe
Photovoltaic modules must perform under conditions of high voltage and in severe environments
over extended periods of time. Malfunctions harbor the threat of fire. Mitsubishi Electric solar
products are designed with safety as the top priority, ensuring customer peace of mind for as long
as they remain in service.

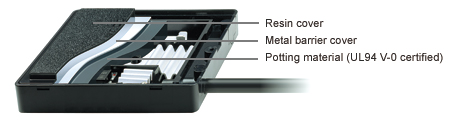

Triple-layer Structure Junction Box (patent pending)
The world’ first triple-layer structure junction box with a metal cover that ensures waterproofing and
fireproofing of the module charging section.

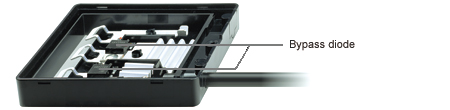

Highly Reliable Bypass Diode
The bypass diode has been built right into the junction box, preventing shaded cell temperature from rising.
The newly developed bypass diode complies with the IEC61215 2nd edition bypass diode thermal test.
Lock Mechanism Equipped Connectors
We have adopted the lock mechanism equipped connector produced by Multi-Contact (models: PV-KST4/II,
PV-KBT4/II) – a major stride toward simpler and more reliable installation work.
TD Series: Lighter Weight
The newly developed Protection Bar can lose the module weight with 2.5 kg per module (19.5 kg to 17.0
kg) by reducing the thickness of glass. This improvement will help transportation and installation work.
Conformity with U.S. and European safety standards (UL1703, TÜV Safety Class II)
|
