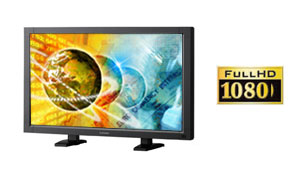

| | | LDT461V - 46" 1080p Full HD Wide LCD Display Monitor | | | SRRP: $5,199.00 | | BDT Code: 650716 |
|
The LDT461V 46" LCD Information display brings outstanding visual quality for commercial or public signage applications in 1080p full HD resolution. The panels used in the LDT461V are professional grade quality, and are designed for bright environments and extended use. For long-term performance, it has features such as power scheduling, screen saver functionality and built-in cooling fans with heat monitoring, which all combine to extend the life of the LCD panel. The panels used in the LDT461V are professional grade quality, and are designed for bright environments and extended use. For long-term performance, it has features such as power scheduling, screen saver functionality and built-in cooling fans with heat monitoring, which all combine to extend the life of the LCD panel. This model can also be installed in either individual or tiled (video wall) configurations to build amazing entertainment and digital signage displays, and is ideal for message boards, video conferencing, classroom presentations, retail kiosks, or gaming displays, or to enhance your facilities with welcome messages, company promotions, or human resources information. | | Call us now on 0800 424 7266 to arrange a demo.
Or you can download a brochure - click here to view the brochure download section. |
| |
LDT461V Features
| |
Unveiling high-resolution 46" large display, in
full HD 1080P.
High quality screen for various business applications
The native resolution of 1920x1080(Full HD), High contrast ratio of 1500:1 and 500cd/m2 high
brightness ensures clear and crisp picture quality in business environments.
portrait viewing |
multi screen |
Scheduling Function ideal for signage display
The Scheduling Function will provide you the flexibility of managing when
your display is ON or OFF, which input signals are displayed at your programmed
time. The scheduling function allows for up to 7 unique programmable settings.
Screen Saver useful for long term operation
To increase the life of the LCD panel, the LDT461V includes Screen Saver
Function. Special setting such as gamma selection, always active cooling-fan
operation, brightness level control, and Orbiting Image function to reduce the
possibility of image persistence or sticking.
Other Features
- Rapid Video Response Time
Enjoyment of artifact free graphics and video in full motion enviroments.
- Motion "Shift" Function
Increased protection against image retention and image persistence.
- Power Save
Detects when input signal is no longer active and will automate the monitor to a Power
Save state to help save the life of the LCD panel.
- High Contrast Ratio (1500:1)
For an incredible visual detail in both data and video display. S-Gamma Control.
- Scheduling
Display during the hours you want – power saving. Flexible control over content.
- Tile Matrix
Create data wall / tile display with multiple LCD Monitors.
- Picture-in-Picture
Show two active input displays simultaneously.
- Panel Lock Out
Prevent unauthorized tampering of panel controls.
- VESA Compliant
Allows for VESA standard mounting arms or mounts.
- Certified for Windows Vista
Plug and Play compatibility with Microsoft Windows Vista.
| |
LDT461V Specifications
| | | | | | | · | Display technology
46" 1080p Full HD Wide LCD Display | · | Remote Control
Wireless type | | · | Resolution
1920 x 1080 pixels | · | Colours
16.7 million colours | | · | Brightness
500 cd/m² (typical) | · | Contrast
1500:1 (typical) | | · | Computer compatibility
PC, MAC Compatibility (640x480 / 800x600 / 1024x768 / 1360x768 / 1280x1024 / 1600x1200@60Hz / 1920x1080@60Hz / 1920x1200@60Hz) | · | Video compatibility
Video NTSC / PAL
HDTV 480i, 480p, 720p, 1080i, 1080p | | · | PC input terminals
15 pin D-sub x 1; Digital DVI-D with HDCP support x 1; BNC x 5 | · | Video input terminals
Component (BNC) x 1; Composite x 2 (BNC & RCA); S-Video x 1 Audio RCA L/R x 2; Stereo mini jack x 1 | | · | Output terminals
PC/Video 15 pin D-sub x 1; Composite x 1
Audio RCA L/R x 1, External Speaker connections | · | Communication terminals
9 pin Mini D-sub (RS232C) | | · | Dimension (W x H x D) incl. Stand
1122 x 703.1 x 404.7 mm | · | Dimension (W x H x D) excl. stand
1122 x 663 x 136.3 mm | | · | Weight
34.6 kgs (incl. stand), 33.0 kgs (excl. stand) | · | Power Requirements
3.0-1.3A@100 - 240V AC,50/60Hz | | · | Aspect Ratio
16:9 | · | Response Time
6ms (Grey to Grey) | | · | Viewing Angle(Left/Right, Up/Down)
176deg, 176deg (typical) | · | Dot Pitch
0.530 mm (Horizontal and Vertical) | | · | Horizontal Frequency
15.625/15.743, 31.5KHz - 91.1KHz (Analogue/Digital) | · | Vertical Frequency
50/58 Hz -85 Hz (Analogue/Digital) | | · | Operating Temperature
5°C ~ 40°C | · | Operating Air Humidity
20% - 80% | | · | Accessories
Power Cord, VGA Cable, User Manual, Remote Control, Batteries x 2, Clamper x 2, Screws for Clamper, Main Switch cover x 1, Removable Foot Mounts x 2, Screws (M5 x 40) for foot mounts | · | 24 month Double Diamond Warranty
- our comprehensive warranty provides you with peace of mind. |
| |
LDT461V Documents & Downloads:
| |
